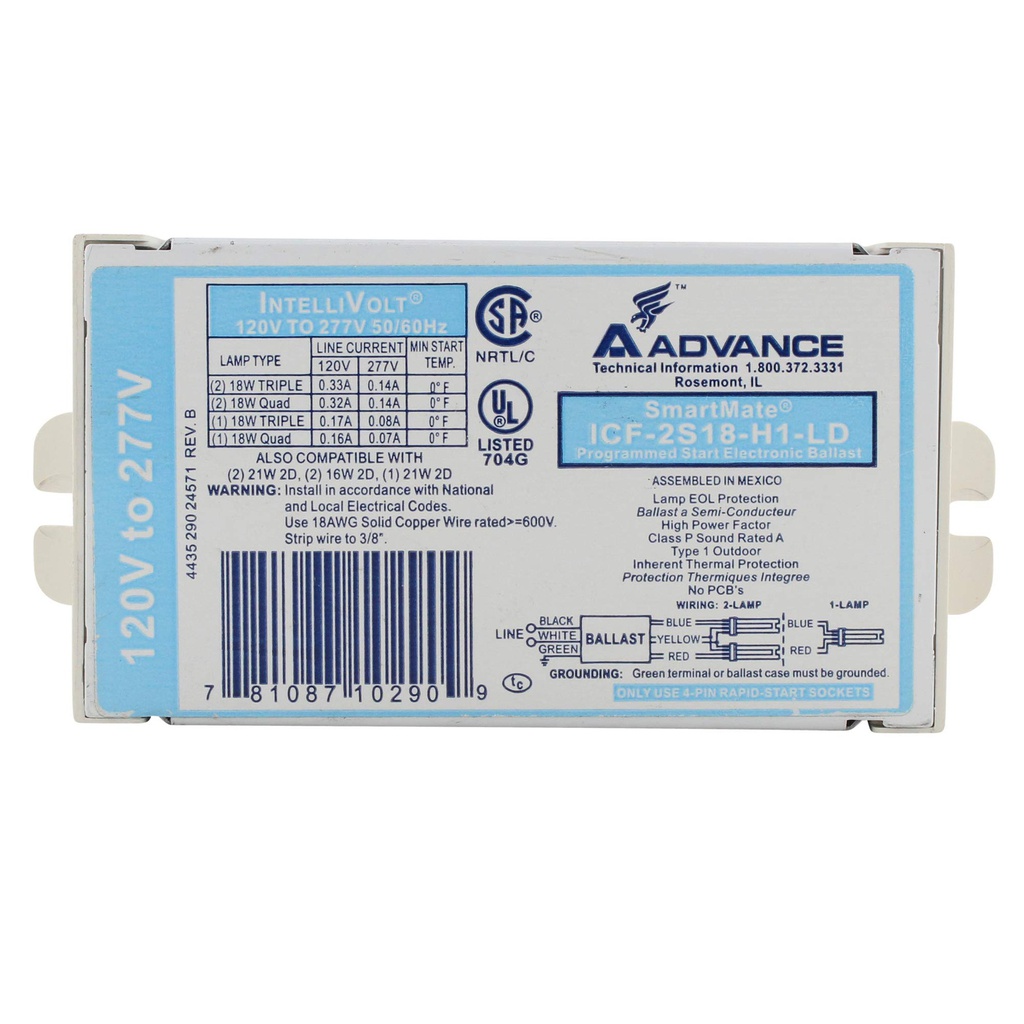

Ballast 1/2 x CF18W 120-277V

Item : CFL Ballast
Ballast Type : Electronic
Input Voltage : 120 to 277V AC
Max. Bulb Watts16 W
Bulb Base Type4-Pin (G24Q), (PL-C)
Dimming Type : No Dimming
Min. Starting Temp.0 Degrees F
Thermal Protection No
Ballast Factor1
Frequency 50/60 Hz
Total Harmonic Distortion : Less than 10%
Width2 7/16 in
Wiring Type : Series
Starter Required : No
Brand and Series : SmartMate(R)
Ballast Start Type : Programmed
Number of Bulbs Supported : 1, 2
Ballast Bulb Type : Compact Fluorescent
Dimming : No Dimming
Method No Dimming
Max. Operating Temp. : 158 Degrees F
Input Watts29 W
Power Factor 0.98
Operating Amps @ 120V0.11 A, 0.25 A
Length4 1/4 in
Height1 in
Includes Lead Wire (Color Coded), Mounting Plate Adapter, Wire Extraction Tool
Standards : CSA Certificate, RoHS Compliant, UL Certificate
